Gear Cutting

Our gear work may start with a drawing, but often doesn’t. We manufacture parts just as readily from a sample or a worn part, working back to the original design intent.

Gears and Similar Parts

  • Spur Gears

  • Helical Gears

  • Worms

  • Worm Gears

  • Splines

  • Internal Gears

  • Gear Racks

  • Bevel Gears

  • Belt Sprockets

  • Chain Sprockets

  • Ratchets

  • Other forms on request

Precision Machining

We run both CNC and manual machines — CNC where complexity or repeatability justifies the higher setup cost, and manual for repairs and one-off parts. Having both lets us pick the most cost-efficient method for each job.

Machined Parts

  • Gear & sprocket blanks

  • Shafts

  • Couplings

  • Threaded parts

  • Taper fits

  • Other forms on request

We’ve machined parts ranging from shafts and couplings to CNC milled chicken nugget shape cutouts.

We also work on and create parts for assemblies in industrial applications, including wire pulling, packaging, food processing and others.

From Our Work

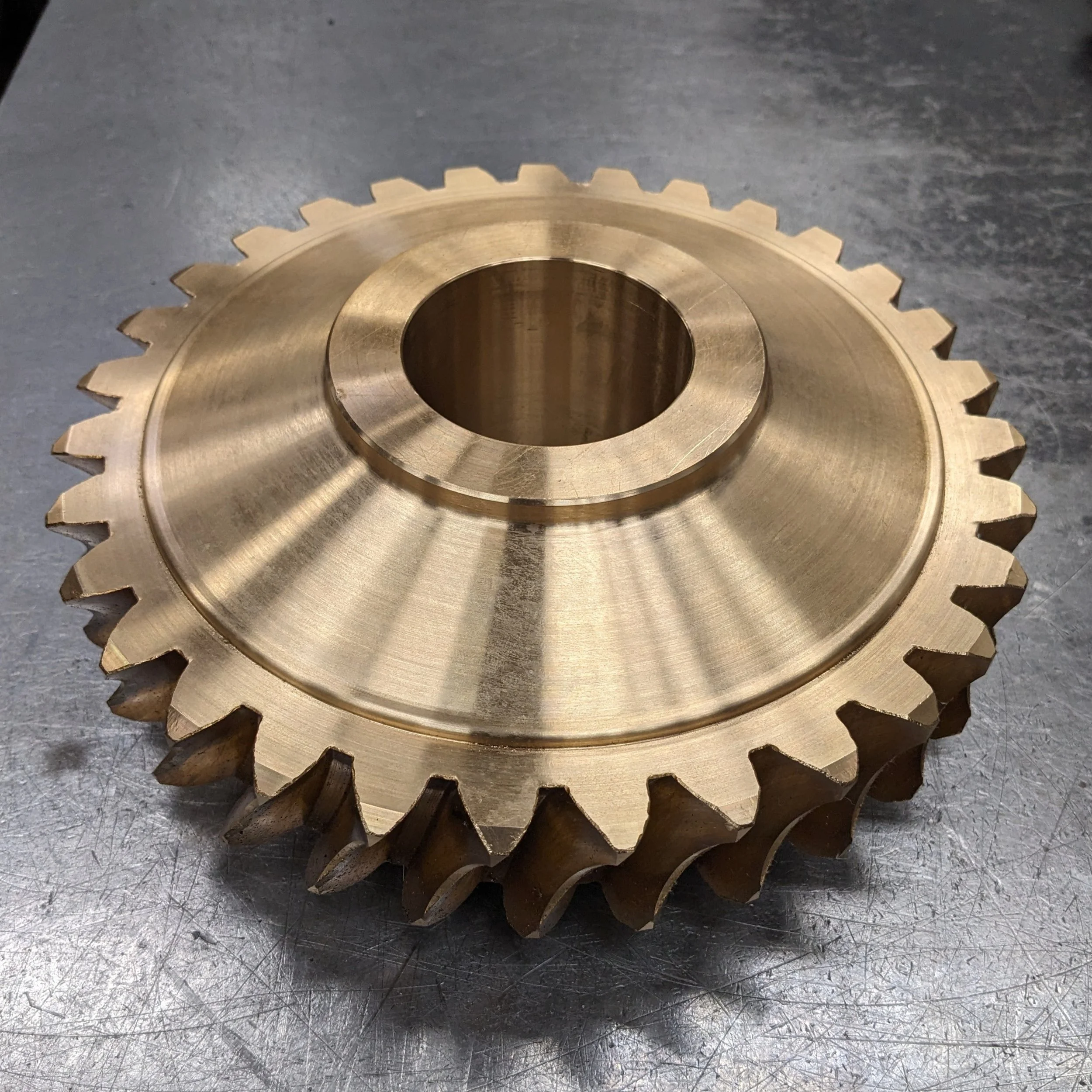

  • Worm Gear

    Worm Gear

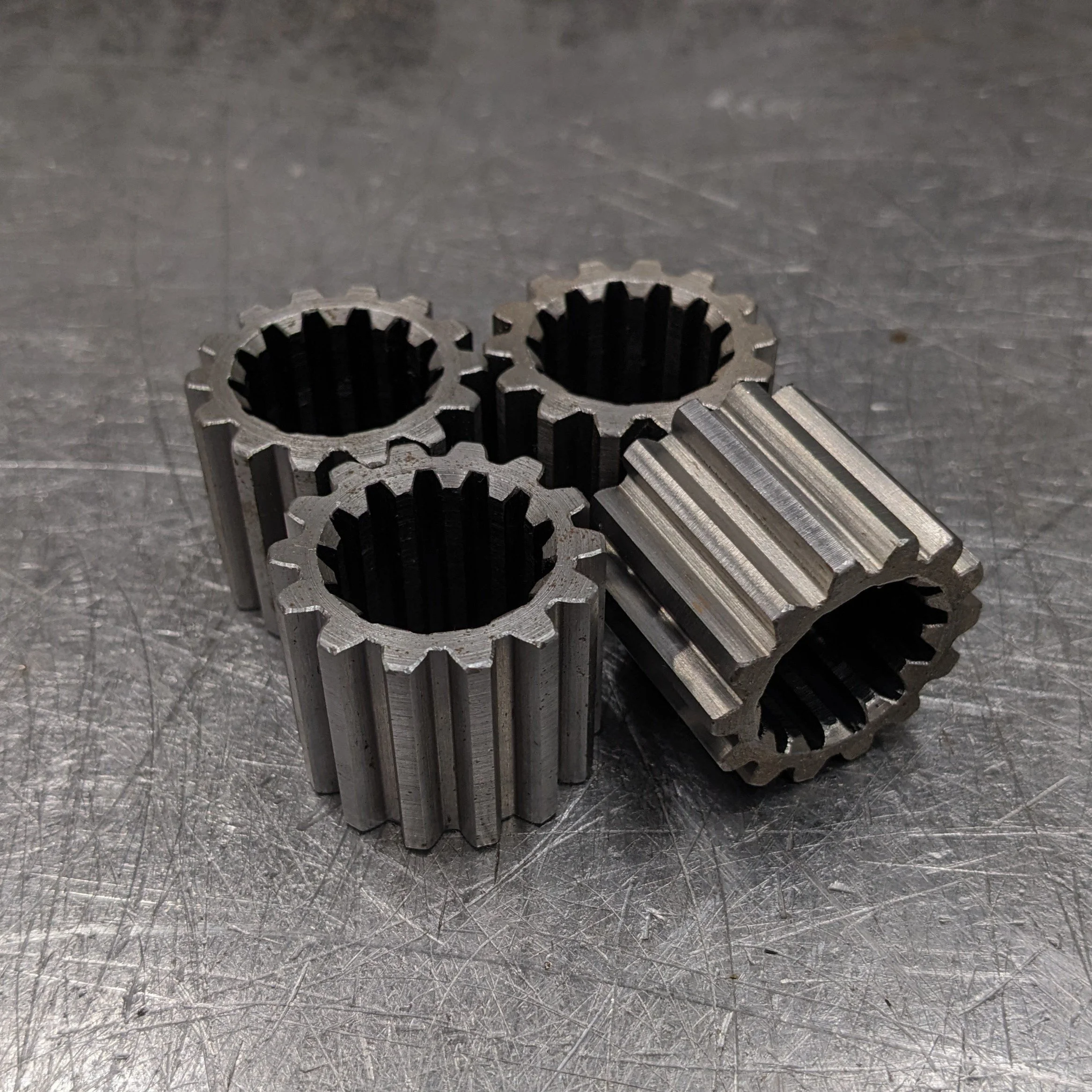

  • Spline Adapters

    Spline Adapters

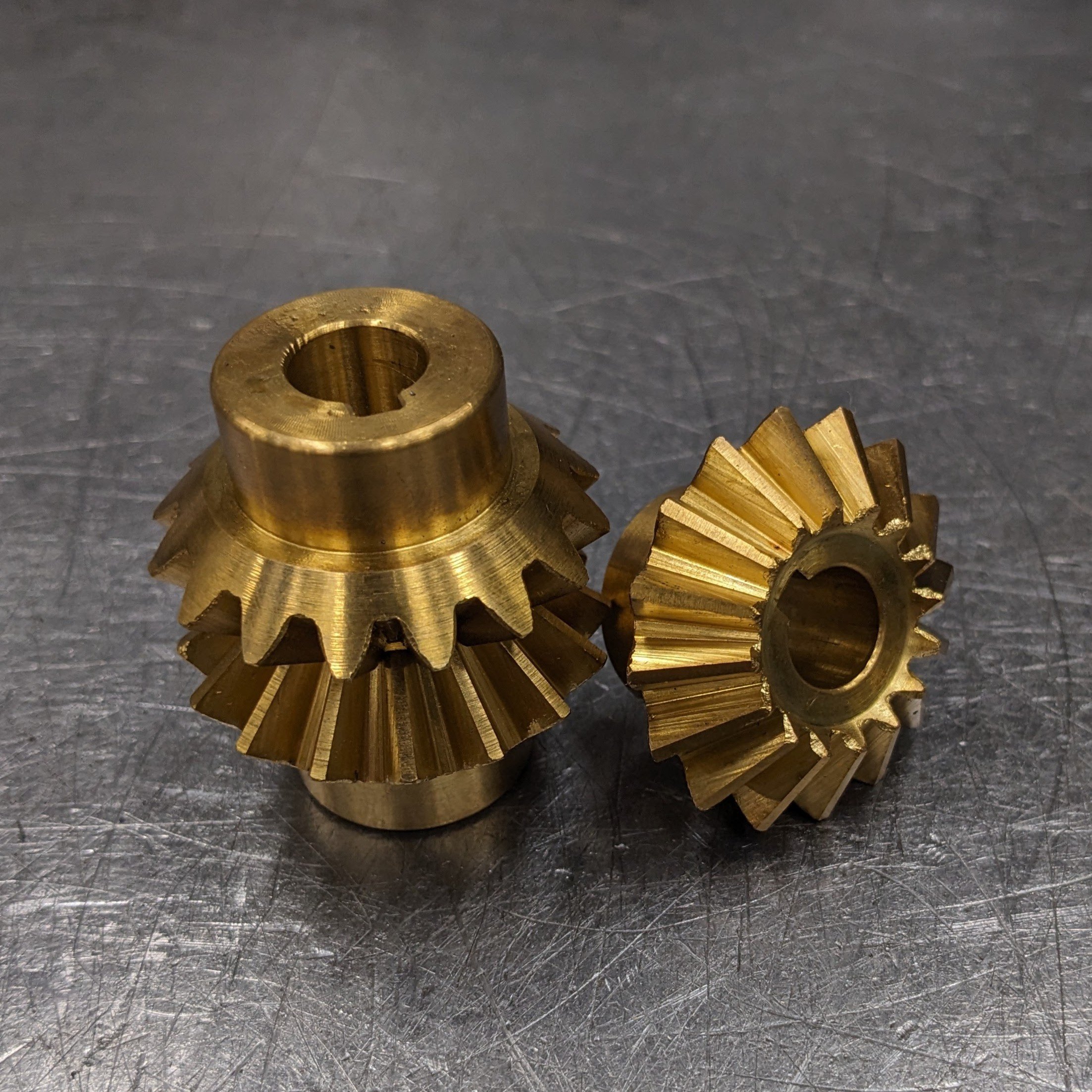

  • Metric Bevel Gears

    Metric Bevel Gears

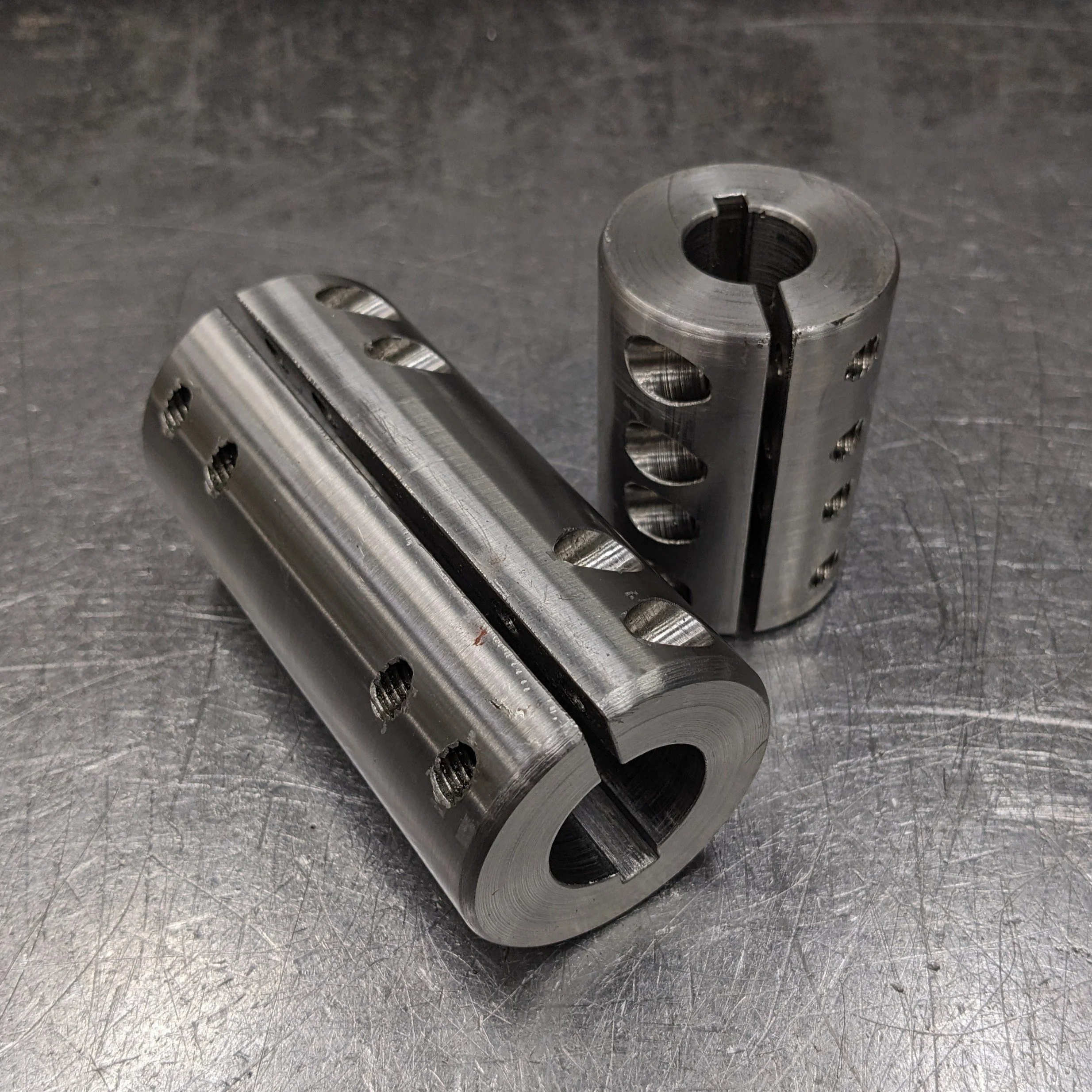

  • Stainless Steel Split Couplings

    Stainless Steel Split Couplings

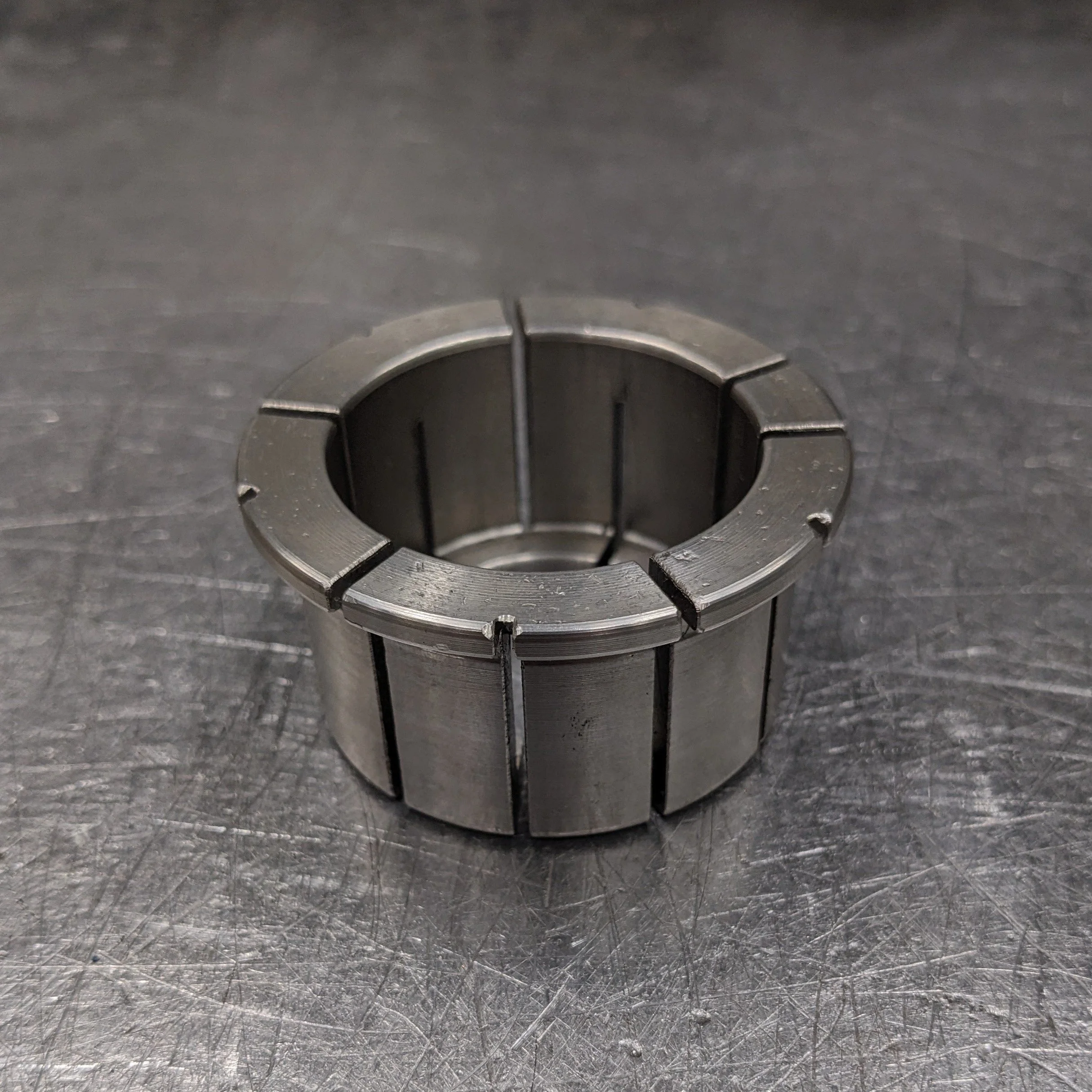

  • Collet

    Collet

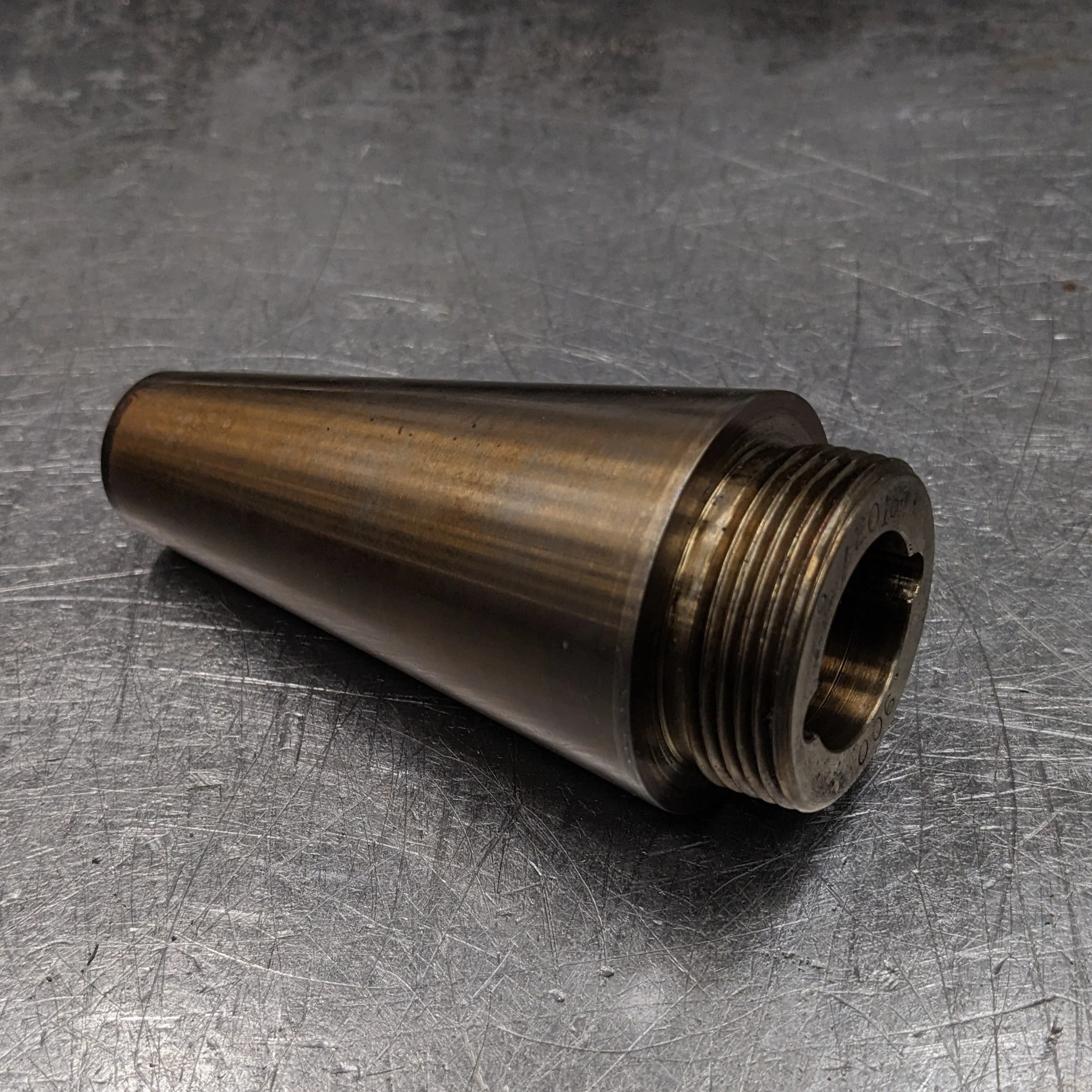

  • Tapered Plastic Extrusion Nozzle

    Plastic Extrusion Tooling

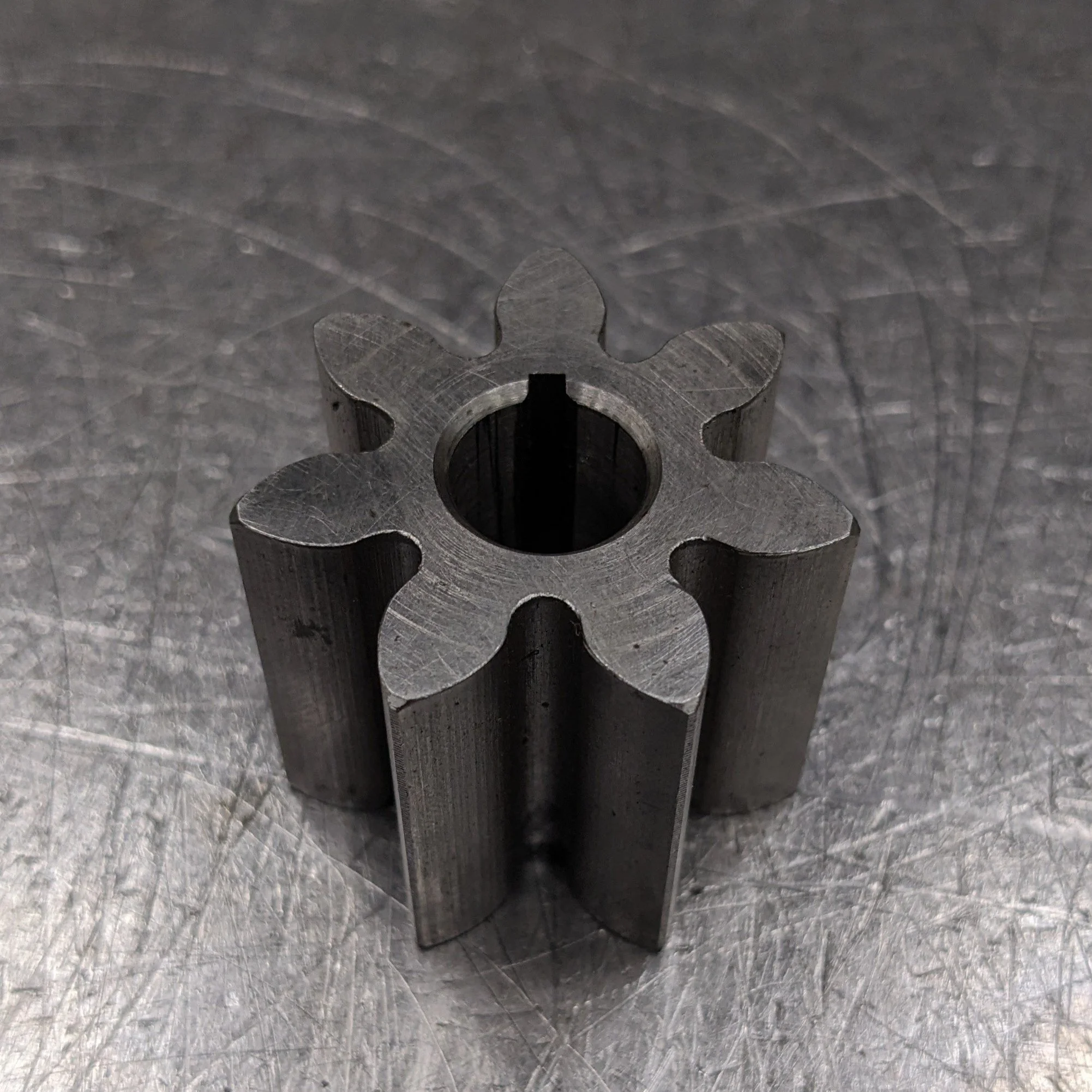

  • Oil Pump Gear

    Oil Pump Gear

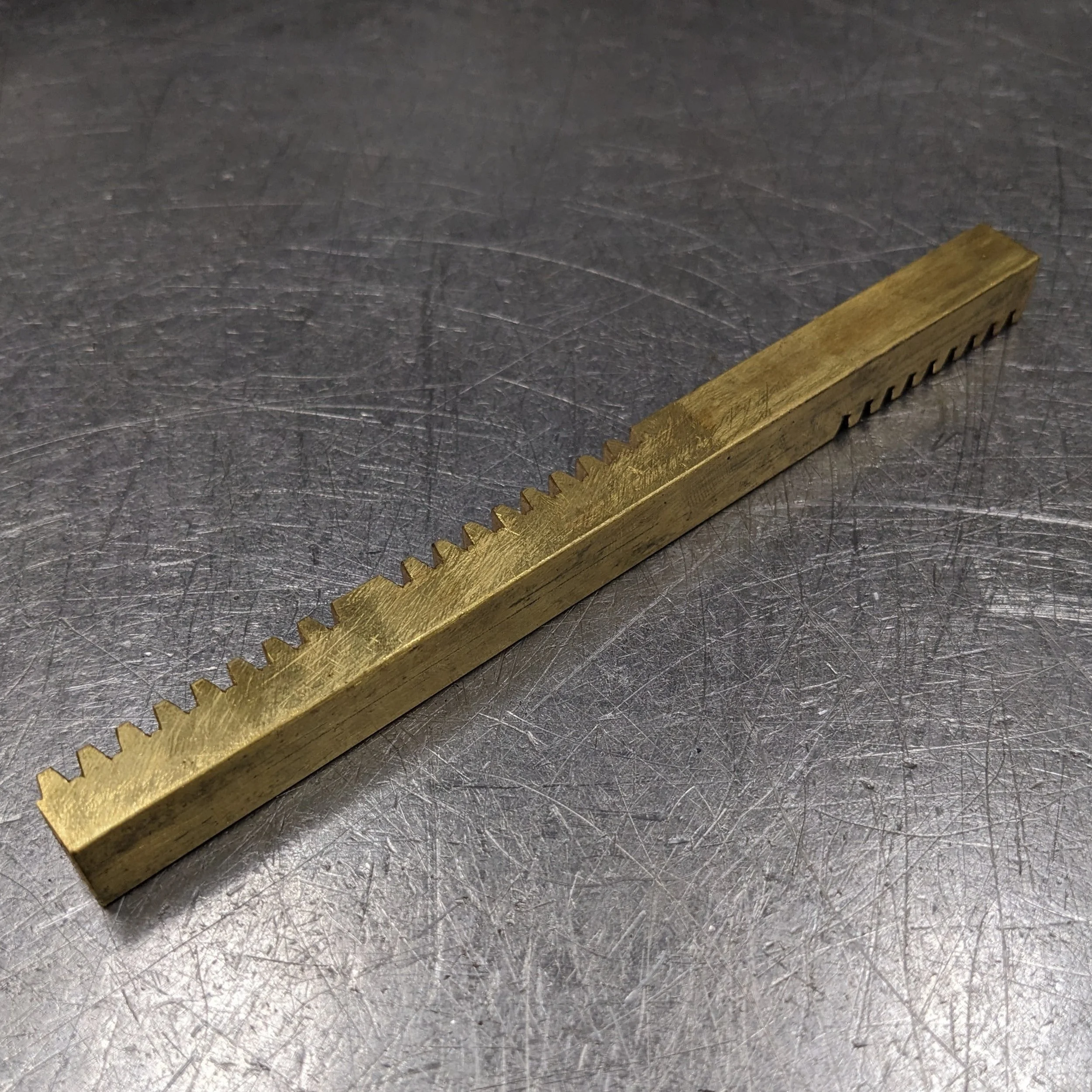

  • Rack Gear

    Rack Gear

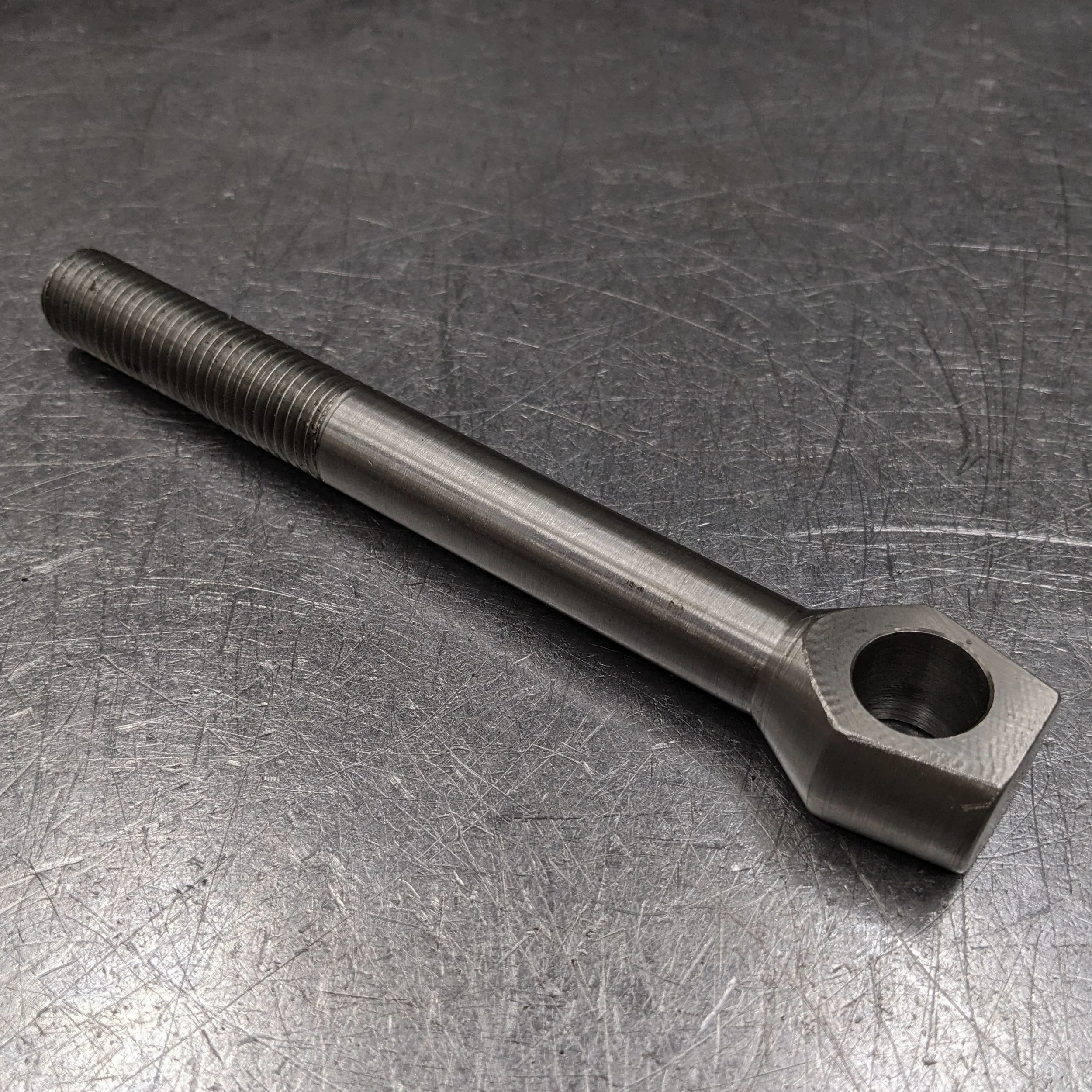

  • Stainless Steel Swing Bolt

    Stainless Steel Swing Bolt

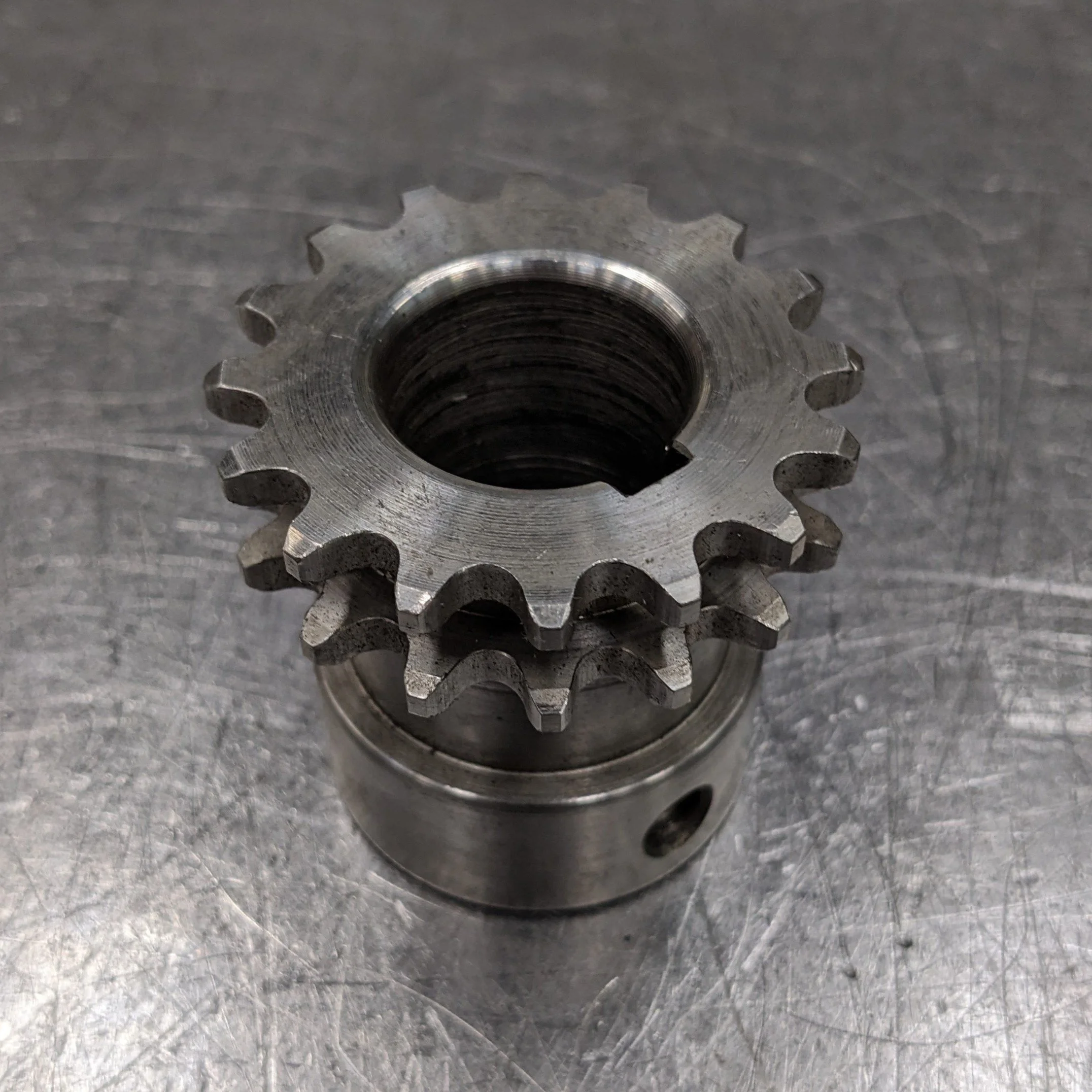

  • Double Row Chain Sprocket

    Double Row Chain Sprocket

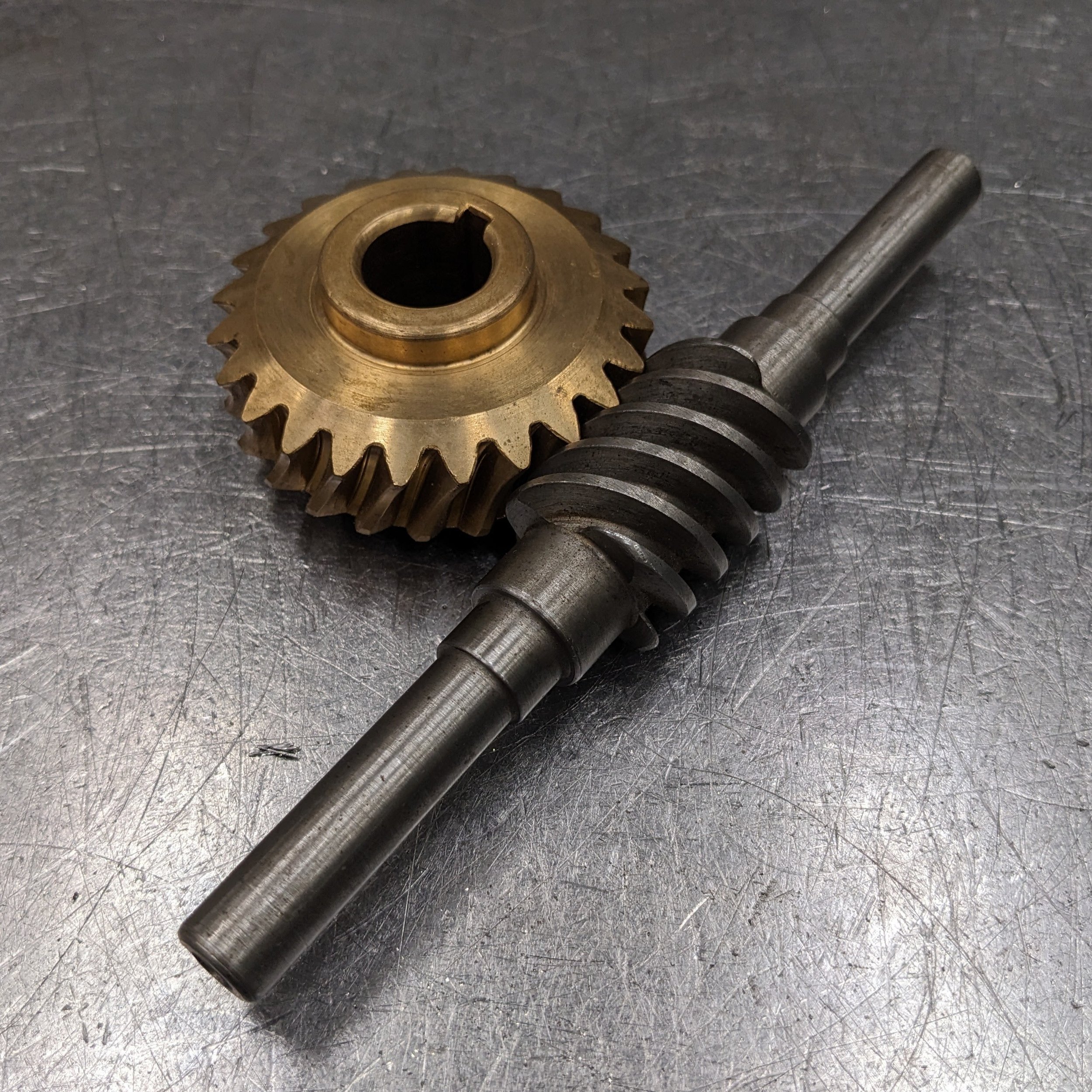

  • Worm Wheel Gear

    Worm and Worm Gear

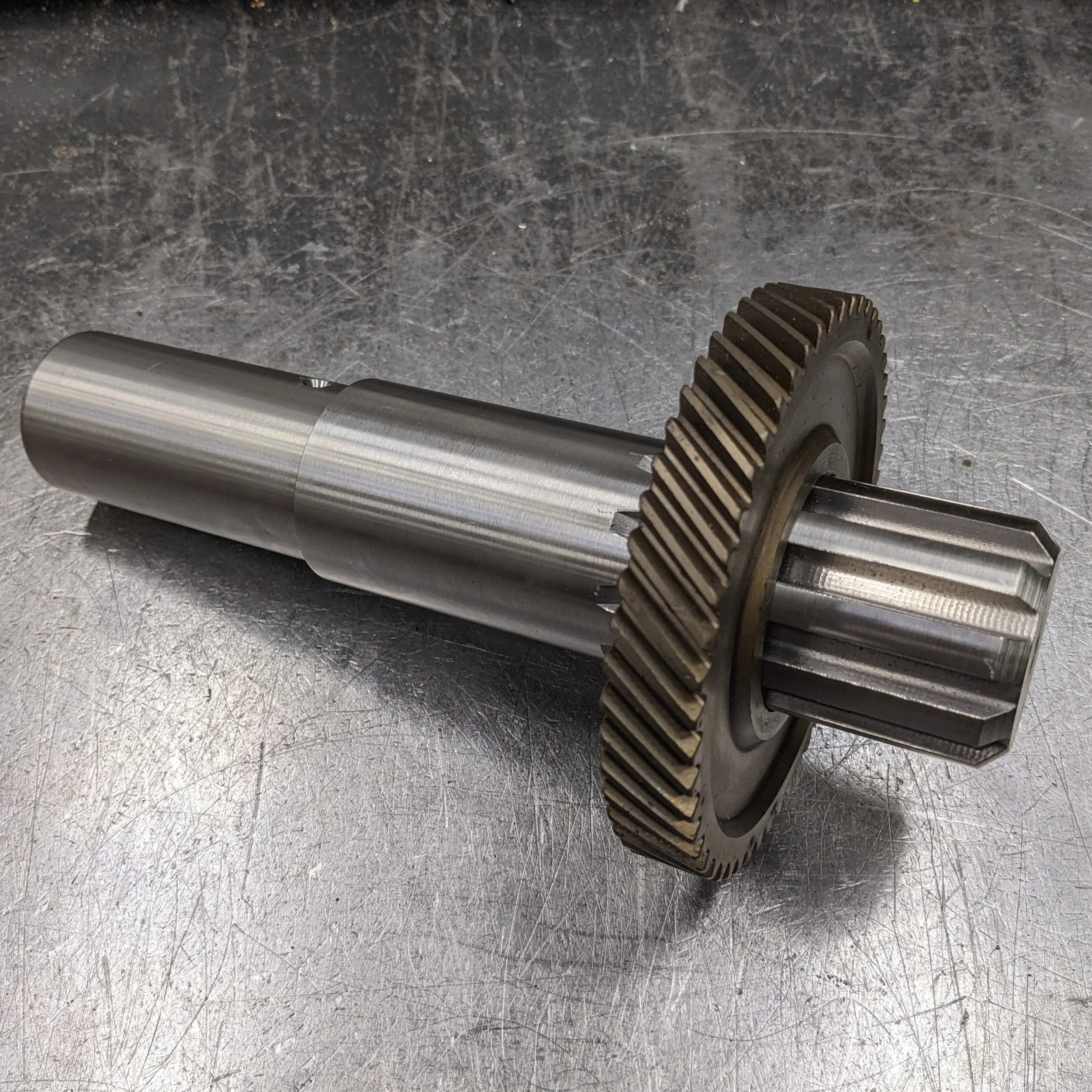

  • Splined Shaft and Helical Gear

    Splined Helical Gear and Shaft

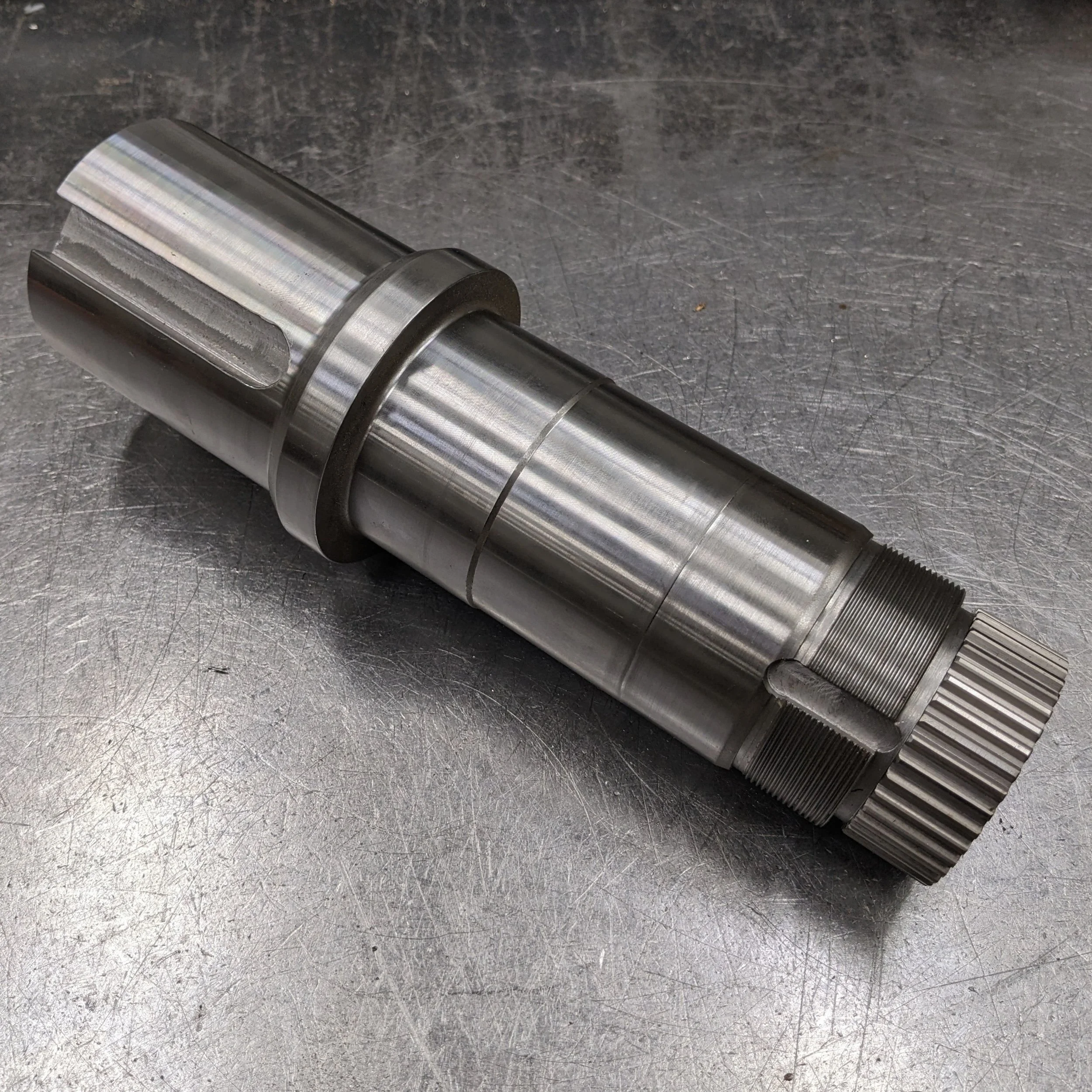

  • Splined Gearbox Shaft

    Splined Gearbox Shaft

Size

We cut spur and helical gears up to 6 feet in diameter.

Materials

We work most often in alloy and carbon steels, stainless, bronze, brass, and aluminum. We also work with cast iron, plastics and other materials when a job calls for them. Common grades include 4140 and 8620 in alloy steel, 1045 in carbon steel, 303/304/17-4 in stainless, and aluminum bronze for worm wheels.

Quantity

Most jobs are a single part or a small batch, made to order. Because setup drives the cost on small quantities, we’ll often talk through whether a few spares are worth cutting at the same time.

Our jobs start with a conversation.

Stop by, call or click below to let us know how we can help.
